Description :

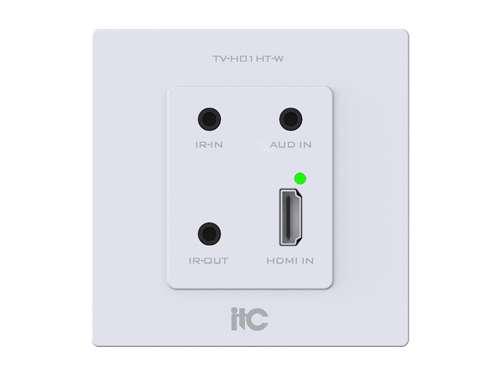

This product is a small , feature- rich HDBaseT wall-embedded receiver box that supports HDMI video output , internal and external audio output, POC power supply, two-way transmission of infrared signals , pass -through EDID and built-in EDID functions, improving compatibility with different displays , and supporting a resolution of 3840 × 2160 P 30Hz .

Features :

* Equipped with 1-channel HDMI-A female interface output and 1-channel HDBaseT input;

* Supports HDMI1.4 standard and HDCP1.4 standard;

* The transmission resolution supports 3840×2160 P 30Hz, and the output video resolution is the same as the input resolution;

* Using advanced HDBaseT transmission technology, the video data is not compressed, high-definition, lossless and without delay;

* Supports P O C power supply, convenient for on-site installation and wiring ;

* With power-off memory protection function and unique ESD static protection function;

* Equipped with 1-channel 3.5mm analog audio output interface , supporting simultaneous output of analog audio and HDMI embedded audio;

* Equipped with 1-channel infrared input interface and 1-channel infrared output interface , supporting infrared two-way transparent transmission;

* Resolution up to 3840×2160 P 30H z; HDPC: 3840×2160 P 30Hz_24bit; HDTV: 3840×2160 P 30Hz_24bit;

* Supports EDID management, optional pass-through EDID or built-in EDID.

Specifications:
