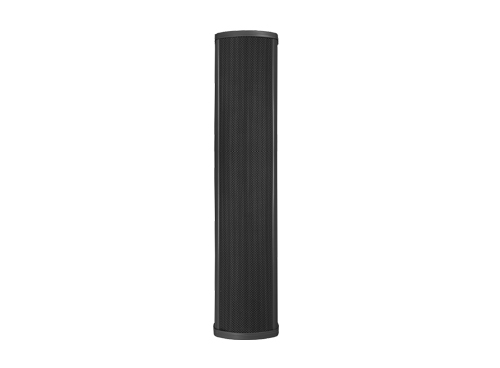

PT-204A Column Speaker

The Details Related Solution Related Cases Related Video Download


Description:


Suitable for outdoor places such as schools, playgrounds, squares, parks, communities and background music system applications .


Features:


* The outer shell is made of aluminum alloy and aluminum mesh cover, with outdoor anti-rust spraying technology. It is not easy to rust after years of use. A waterproof net is added inside to ensure all-weather outdoor use .

* Built-in 6 large magnetic steel 2.5-inch full-range speaker units to improve the sound effects of mid-high frequencies, making the mid-high frequencies clearer and brighter .

* Built-in high-performance 70V/100V audio transformer can reduce the loss caused by impedance in the circuit .

* Comes with a mounting bracket that allows for horizontal or vertical adjustment of the angle .


Specifications:


Rated power (100V)

20W,40W

Rated power (70V)

10W,20W

Impedance

Black: COM White: 500Ω Green: 250Ω

Frequency response (-10dB)

100-16kHz

Sensitivity (±3dB)

92dB

Maximum sound pressure level (rated/peak)

108dB/114dB

Speaker unit

2.5"×6

Dimensions (WxDxH )

105×75×550mm

Protection class

IP66

Weight

2.8kg
