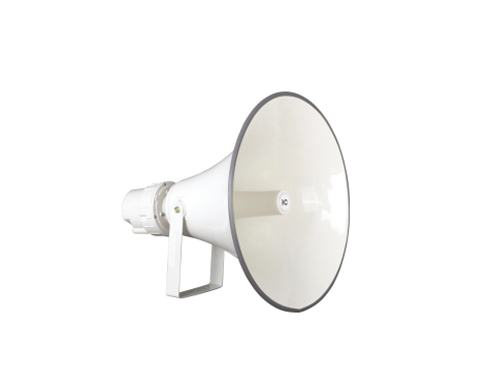

TF-2026CD Weatherproof Horn Speaker

The Details Related Solution Related Cases Related Video Download


Features:


*Wide frequency domain waterproof speaker with unique appearance design, composed of aluminum housing and plastic back cover structure, high power, strong sound penetration and wide coverage.

*Built-in high-performance copper wire audio transformer, which can reduce losses caused by impedance in the circuit and has multiple power options.

*The upper and lower angles can be flexibly adjusted to facilitate user operation and installation.

*Suitable for square, railway station, etc.


Specifications:


Model

TF-2026CD

Rated Power(100V)

25W, 50W, 100W

Maximum SPL

134dB±3dB

Maximum Power

200W

Impedance

COM /400Ω/200Ω/100Ω/ 50Ω

Frequency Response (-20dB)

80Hz -20KHz

Sensitivity (1W/1M)

114dB±3dB

Dimension

485×500mm

Weight

4.6Kg

IP Rate

IP66
