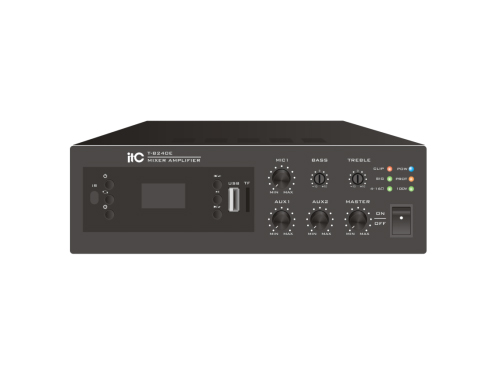

T-B240E Mini Digital Mixer Amplifier with MP3(USB/TF) and Bluetooth

The Details Related Solution Related Cases Related Video Download


Description:


The desktop mini constant-voltage power amplifier is beautiful in appearance, light in weight, and easy to carry. It can be used for background music playback and broadcasting in homes, casual cafes, classrooms, and other small indoor venues.


Feature:


* Desktop design, beautiful appearance, light weight and easy to carry.

* Support adaptation to different sound effect venue ranges: This series has 4 models, 240W, 120W, 60W and 40W, which can be selected according to the required range.

* The output terminal is selectable and can be connected to a fixed resistance 4~16 ohm output or a 100V output, supporting both short-distance music playback and long-distance broadcasting.

* The latest high-reliability switching power supply and digital power amplifier core technology.

* 1-channel XLR microphone audio input with 48V power supply and independent volume adjustment control.

* 2 line audio inputs, each with independent volume adjustment.

* LCD screen display, with automatic playback of MP3 audio format songs and power-off memory function.

* With priority function, when there is microphone 1 input, other input audio signals can be muted.

* Built-in power, signal, distortion, protection and other indicator lights.

* Support power amplifier short circuit, overload, over-temperature and other protection functions.

* With MP3 player and remote control function, it supports playing MP3/WAV/ WMA/ APE/FLAC and other file formats from U disk and TF card.

* Support FM radio and Bluetooth reception functions, and can be connected to computers, mobile phones and other devices.


Specification:


Rated output power

240W

Speaker output

416Ω/100V

Input sensitivity

MIC input: +5mV, balanced XLR connection terminal

Source impedance

AUX1-2 input: 350mV, unbalanced RCA connection terminals

Tone

Bass: 100Hz±10dB, Treble: 10KHz±10dB

Frequency response

8016KHz(-3dB)

SNR

≥75dB

THD

Rated power output, distortion ≤1%

Priority function

Support, MIC1 input has priority over other inputs

Protection

Overheating protection, short circuit protection, overload protection

Input power

~220V 50Hz

Power consumption

350W

Weight

2.9Kg

Size

215×283×65mm
