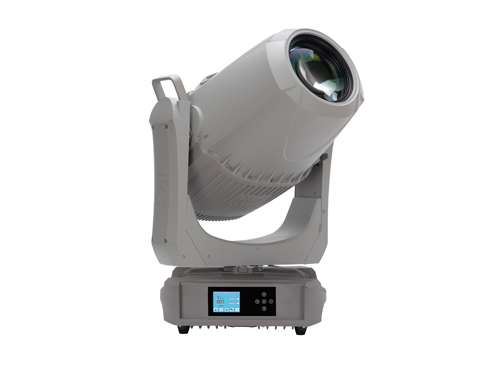

TL-LT886 Moving Head Profile Light

The Details Related Solution Related Cases Related Video Download


Feature:


*  Dimming: 0-100% linear dimming.

*  Color wheel: 7 color gels + white light, bidirectional stepless rotation, magnet positioning, color index, half-color and other functions.

*  Gobo wheel: 6 rotating gobo wheels, 6 gobos; gobo positioning, rotation, dithering and other effects.

*  Cutting system: It can cut graphics including triangles, squares, parallelograms, and semicircles; the cutter pattern supports bidirectional 90° rotation and flexible positioning functions according to the scene.

*  Aperture function: Zoom-in and zoom-out dynamic effects can be achieved.

*  Adjustable focus: DMX linear focusing, ultra-fine and smooth focus adjustment.

*  Prism: Optional triangular prism, rectangular prism, and four-row lens, etc.

*  Atomization: 10%-100%.

*  Strobe: Electronic strobe, 0-25 times/sec (built-in pulse strobe effect).

*  Scanning range: Horizontal 540°, vertical 270°, with auto return function.

*  Display interface: 2.8-inch LCD widescreen Chinese and English interface, with flip function.

*  Other functions: The input signal has an isolation protection function to ensure stable signal transmission without interference; built-in NTC temperature control function, when the LED is overheated, the output power of the LED will be intelligently reduced; it supports software upgrade through the DMX data line; the lamp usage time, bulb usage time and software version number can be displayed.


Specification:


Model

TL-LT886

Input voltage

110V~240V AC, 50/60Hz

Rated power

900W@220V

Light source

1pcs 650W white light LED module Osram chip

Color temperature

8000K±300K, CRI≧95

Service lifespan

≧20000H

Beam angle

6°-45°

Control mode

International standard DMX512 signal, 3-core signal line (five-core optional) DMX512 interface; DMX wireless function optional; 4 operation modes (DMX mode, self-propelled mode, manual mode, stand-alone editing mode); support RDM protocol and program online update function

Channel

28/14 channels

Fixture material

High temperature resistant engineering plastic + cast aluminum/wire-drawing aluminum material + copper tube radiator + waterproof fan for heat dissipation

Working temperature

-20℃45℃

Protection class

IP66

Fixture size (L×W×H)

457×320×768mm

Package size (L×W×H)

730×670×545mm

Gross weight

49.5KG

Net weight

45KG
