Rated power

30KW, output channels: 9 channels

Input voltage

3-phase 5-wire AC380V±10%, the power frequency is 50Hz±5%, with over-current, over-voltage, short-circuit, circuit-break, overload, surge and other protection functions.

Output voltage

single phase AC 220V

Optional switch

D32A*1P

AC Contactor

(Rated current 50A)*1+（Rated current 32A）*1

Current rating

53.6A, main circuit breaker current: 80A, short-circuit leakage instantaneous protection value 10A

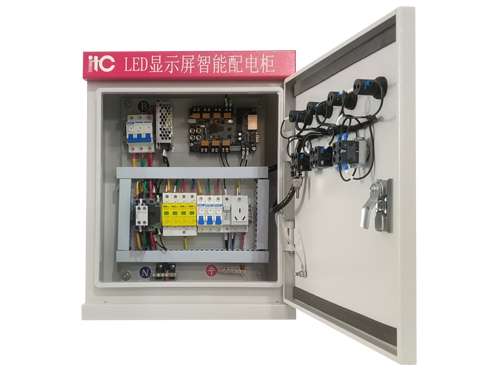

The electric box contains multi-function card control, with remote control function.

Built-in lightning arrester, with B-level lightning protection.

Support remote switch power box, remote communication, power monitoring, temperature monitoring and other operations through LED screen smart control system software.

Operating humidity

10%—80%

Operating temperature

‐20℃—+55℃

Enclosure rating

IP30

Dimension (H×W×THK)

600mm*500mm*200mm

Weight

≤19.5Kg

Material

Iron box

Built-in 16A spare socket
