Description:

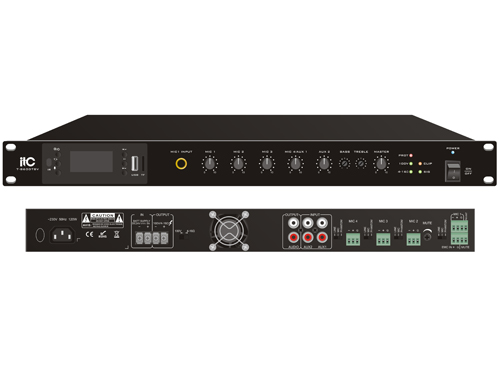

Mixer amplifier build-in MP3/TUNER/Bluetooth, is used for small and medium-sized indoor venues such as small and medium-sized supermarkets, shopping malls, leisure cafes, etc.
Features:
* Standard rack mounted design (1U), compact SMT process design.
* With MP3 function module, adopt LCD display, support playback of various file formats in U disk such as MP3, WMA, APE, FLAC, WAV, and AAC; with TF card, support mobile phone Bluetooth function, and can display song names.
* Support mp3/TUNER/Bluetooth remote control function.
* 1 EMC input, 2 AUX inputs, 4 MIC inputs.
* Channel priority function EMC>MIC1>MIC2, MIC3, AUX1, AUX2.
* Each input has independent volume adjustment, and the total volume has treble, bass adjustment and volume control.
* MIC1-4 supports balanced input, built-in 48V phantom power.
* The machine is equipped with level indication, overload and protection indicator.
* The device has good self-protection such as short circuit, overload and overheating protection.
* Two output modes: constant voltage output 100V, constant resistance output 4-16Ω.
* The high-efficiency energy-saving switching power supply is perfectly combined with the high-energy saving and ultra-stable design of class D digital power amplifier.
* Support standby DC 24V without delay switching.
Specifications:
|
Model |
T-B60DTBV |
T-B120DTBV |
T-B240DTBV |
T-B350DTBV |
T-B500DTBV |
||
|
Output Terminals |
4-16Ω, 100V |
||||||
|
Rated Power |
60W |
120W |
240W |
350W |
500W |
||
|
Input Sensitivity & Impedance |
MIC1, 2, 3, 4 input: 5mV/600Ω balanced European connection terminal; |
||||||
|
AUX1, 2 input: 350mV/10KΩ unbalanced RCA connection terminal; |
|||||||
|
EMC input: 775mV/10KΩ unbalanced European connection terminal |
|||||||
|
Output Sensitivity &source Impedance |
MIX OUT:1000mV/470Ω unbalanced RCA connection terminal |
||||||
|
Tone |
Bass:±10dB at 100Hz; |
||||||
|
Treble:±10dB at 10KHz |
|||||||
|
Frequency response |
80Hz~16KHz(+1dB,-3dB) |
||||||
|
SNR |
MIC1, 2, 3: 66dB; AUX1, 2: 80dB |
||||||
|
THD |
Less than 0.5% (@1KHz, 1/3 rated power) |
||||||
|
Phantom Power Supply |
48V (±2V) |
||||||
|
Mute Function |
MIC1 prior to MIC2-4, AUX1-2 audio input, EMC prior to all audio input |
||||||
|
Channel Crosstalk Attenuation |
≥50dB |
||||||
|
Cooling |
Flank in and rear panel out to force fan cooling, fan starts when amplifier turned on, infinitely variable speed |
||||||
|
Protection |
Overheat protection, over current protection, short circuit protection |
||||||
|
Power Supply |
~220-240V / 50Hz |
||||||
|
Power Consumption |
120W |
180W |
300W |
500W |
650W |
||
|
Dimension |
484×300×44mm |
||||||
|
Weight |
3.5Kg |
3.7Kg |
3.8Kg |
4.0Kg |
4.1Kg |
||
