TV-8204DC Output Board Card

The Details Related Solution Related Cases Related Video Download

Description:

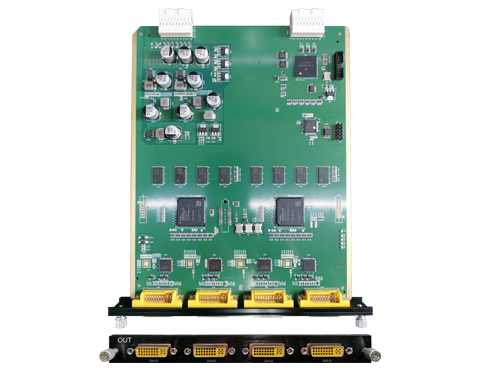

The 4-channel DVI output board card is a HD image output card of LED image processor, which supports 4 channels of DVI HD digital signal outputs, and also supports EDID function.

Specification：

Model	TV-8204DC
Interface type	DVI-I, compatible with DVI-D
Interface quantity	4
Board size	21024020mm
Signal type	DVI HD digital signal
HDCP	Support
EDID	Support
Signal resolution	1920*1200@60Hz
Screen quantity of each output interface	4 screens
Control method	Internal data control
