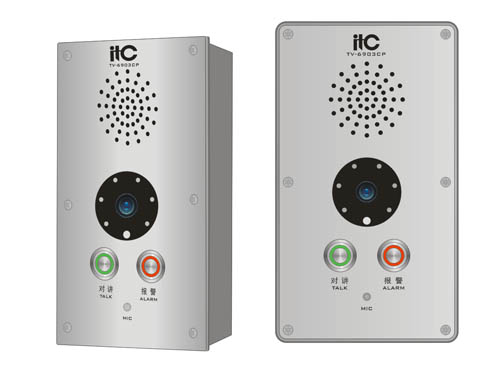

TV-6903CP Video Intercom Terminal

The Details Related Solution Related Cases Related Video Download



Description:


With a built-in 1080P camera, the terminal can realize emergency alarm/intercom function. It is explosion-proof and waterproof, and suitable for both indoor and outdoor environments.


Feature:


*  Adopt professional audiovisual processing chip and embedded Linux operating system, stable and reliable, and achieve 7*24 hours of uninterrupted operation.

*  Simple appearance, beautiful structural lines, anti-removal screw design, high-strength alloy anti-oxidation panel.

*  Support network two-way intercom with the video intercom host.

*  Support the monitoring of the IP network host, used as the listening terminal.

*  If the device is in a continuously noisy environment and it exceeds a certain decibel, it can automatically alarm the host.

*  Support receiving MP3 file broadcasts from the host over the network.

*  Support the real-time transmission of audio and video collected by the built-in camera and microphone to the server for storage, playback, and real-time browsing.

*  Support standard SIP communication protocol, support two-way intercom with VOIP phone.

*  When someone illegally forcibly demolishes it, it can automatically alarm the host.

*  When it alarms, it can be linked with other platforms through TCP connection. For example: turn on the surveillance camera.

*  Encrypt data in transit to prevent eavesdropping and make calls more secure.

*  The online status of the terminal can be detected in real time, which is convenient for debugging, inspection and maintenance.

*  Support POE power supply; power supply and signal transmission can be realized only through the network cable.


Specification:


Model

TV-6903CP

Network interface

Standard RJ45 interface, support POE power supply

Transmission rate

10/100Mbps

Communication protocol

TCP/IP, UDP, IGMP, RTP, ONVIF

Audio format

ADPCM, PCM, MP3, WAV

Audio protocol

G.711 a/u, G.722, AAC

Audio sampling rate

16KHz48KHz

Audio mode

16-bit stereo CD quality

Built-in speaker impedance power

, 5W

MIC input sensitivity

10mV

Audio stream

16Kb256Kb

Audio interface

Built-in MIC, Line out

THD

<0.5%

SNR

>70dB

Video format

H.264

Video protocol

SIP, RTMP, HTTP

Video stream

128Kb2Mb

Camera

Built-in 1080P camera

External interface

3 GPIO ports (Configured with switch signals such as door magnetic); 2 relays (Configured with door lights, alarm linkage, electric lock, etc.); 1 RS485 port, connected to 485 door light

Dimension (L×W×H)

175×98×51.5mm

Power supply

External DC power supply, POE power supply

Power voltage

DC 12V

Working temperature

-20℃+50℃

Relative humidity

10%90%

Weight

0.60kg
