Description:

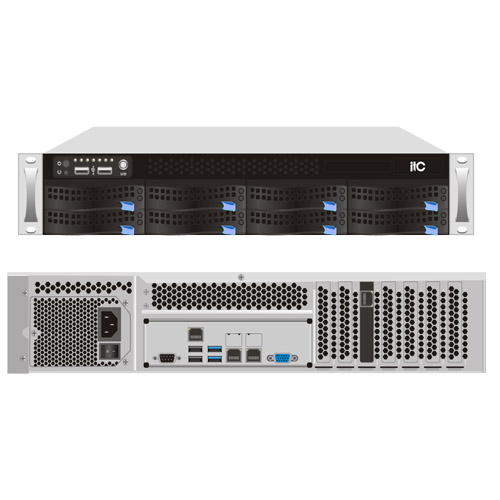

Paperless conference system controller with management software, is used to preset the conference information, including conference function module, conference themes, participant information, conference topics and voting content. It has application functions of uploading and sharing different conference data, managing and setting the personnel permissions, recording conference information in real time, etc.
Feature:
* 2U rack-mount design, quality 1.0mm galvanized steel plate, and stable structure; excellent heat dissipation design, four double ball high speed fans.
* Support hot swap, a maximum of 8 hard disks, and RAID 0, 1, 5, 10.
* The dedicated remote port supports remote management.
* Rich network interfaces: two gigabit network ports, one 10G optical port, supporting multiple modes.
* E5 series processor with powerful performance.
Specification:
|
Model |
TS-8300B |
|
CPU |
Intel Xeon E5-2620v3(6 cores/12 threads/CPU clock speed 2.4GHz)(due to frequent product upgrades, its performance will continue to be optimized) |
|
RAM |
ECC DDR4 16G |
|
Hard disk |
4TB Seagate enterprise hard disk |
|
Disk array |
Support RAID 0, 1, 5, 10. |
|
Hard disk bits |
8 hard disk extraction boxes with locking function and sliding rail design |
|
Network port |
1 10G optical port, 2 gigabit network ports and 1 remote port |
|
Video output |
1 |
|
Others |
1 serial port, 6 USB ports (4 rear and 2 front) |
|
Voltage input |
100-230V, 50/60Hz |
|
Dimension |
550×440×88mm (L×W×H) |
|
Working temperature |
-10℃~60℃ |
|
Relative humidity |
5%-90%, no condensation |
|
Weight |
4.0Kg |
