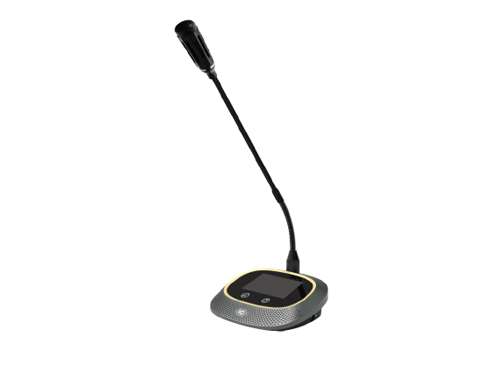

TS-0318C/ TS-0318CA Conference Chairman/Delegate Unit

The Details Related Solution Related Cases Related Video Download


Feature:


* Short microphone pole design, long distance pickup.

* Adopt uncompressed audio transmission technology, 48K sampling rate, 80Hz-16KHz bandwidth perfect sound quality.

* Adopt 100M network transmission and single-line access to the ring network to improve the reliability of system operation.

* Adopt standard TCP/IP communication protocol, and support ping packet function.

* Designed with a 4.1-inch circular full-color touch screen.

* Support 63+1 simultaneous interpretation channels, all the speeches of the chairman and delegate units are listened to in channel 0, and channels 1 to 63 are the channels for listening to the interpreter machine.

* With 1 3.5mm headphones interfaces, support listen to the sound of any channel for 63+1 channel.

* Support PC software for microphone control, support voice control function.

* The chairman has the priority to turn off the speaking delegate unit.

* Built-in independent web server, support four language switching, adjustment of microphone ID and microphone sensitivity.

* Support the function of speech timekeeping and speech countdown, the delegate unit supports the function of requesting a speech.

* Support internal feedback suppression function, voice control function, and adjustable voice control sensitivity.

* Support sign-in function, support functions such as prohibiting unit sign-in and controlling unit sign-in through PC software.

* Support voting function, there are multiple optional voting modes, and the content of the options can be customized and sent to the unit for display.

* Support web page firmware upgrade function.

* Support IP address sniffing function, you can find unknown ID number, IP address, MAC address and other parameters through PC tools.

* Support modifying the device type (chairman/delegate) and setting the clock screen saver through the network.



Specification:



Model

TS-0318C

TS-0318CA

Microphone type

Electret condenser microphone

Microphone directivity

Cardioid

Frequency response

80Hz~16KHz

Input impedance

1KΩ

Sensitivity

-40±1dB (0dB=1V/Pa, at 1KHz)

Max SPL

120dB(THD3%)

SNR

>80dB(A)

Crosstalk

>70dB

Dynamic range

>80dB

THD

<0.1%

Max power consumption

4W

Power supply

Conference host power supply

Color

Fine sand graphite gray

Sign-in function

Key sign in

Installation method

Desktop

Microphone pole

240mm integrated square short microphone rod (light black)

Dimension (L×W×H)

100.9×130×54.3mm(base)

Weight

1.2KG
