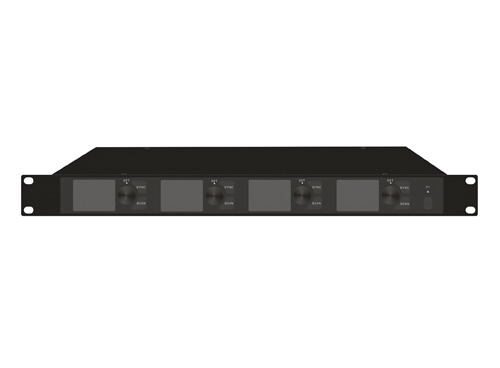

T-594U 1 Receiver + 4 Wireless Microphones

The Details Related Solution Related Cases Related Video Download


Description:


It is a digital wireless microphone system with a new solution architecture. The system adopts unique digital U-band transmission technology, pi/4-DQPSK modulation mode, and uses ID code pilot technology to prevent cross-frequency interference, and frequency sweep to avoid interference, characterized by low bit error rate, stable transmission, and strong anti-interference ability. It can be widely used in conferences, training, public broadcasting and other places.


Feature:


* With 4 balanced output interfaces and support connecting 4 microphones to achieve audio output function.

* Adopt unique digital U-band transmission technology, pi/4-DQPSK modulation mode, strong anti-interference ability, low bit error rate and stable transmission.

* Adopt a unique encryption method for audio transmission to protect the content of the meeting.

* Adopt unique ID code pilot technology to prevent cross-frequency interference.

* Support one-click frequency scanning to avoid interference; one-click infrared frequency matching, easy to operate.

* Support reverb, high, middle and bass adjustments.

* Support four balanced outputs and one unbalanced mixing output.

* Adopt 2.2-inch TFT-LCD screen to display information more delicately.

* The receiver panel is made with exquisite craftsmanship and is elegant and beautiful.

* The transmitting power is adjustable, adjust the transmitting power as needed.


Specification:


Frequency Range

540MHz-590MHz640MHz-690MHz

Output Interface

4 balanced output interfaces

Modulation

pi/4-DQPSK

Frequency response

20Hz~20KHz ±3dB

SNR

≥105dBXLR

THD+N

0.1%

Working distance

about 50m

Antenna interface

BNC/50Ω×4

Receive sensitivity

-95dBm

Maximum output

Balanced output 500mV, unbalanced output 1000mV

Power supply

DC 12V/1A

Working current

≤0.55A

Power consumption

7W

Dimensions (L×W×H)

482.6mm×212mm×43.6mm

Weight

2.55kg
