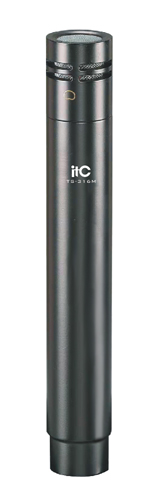

TS-316M Small Diaphragm Microphone

The Details Related Solution Related Cases Related Video Download




Description:


Adopting the electret condenser microphone design, it features excellent bunch directivity. It can be used for stereo recording, and can always achieve outstanding spatial effects. Single or multiple microphones can be used at the same time. It is suitable for recording with multiple audio sources, and for group pickups of musical instruments such as chorus and orchestra performance.


Specification:


Model

TS-316M

Directional characteristics

Bunch

Interface

Balanced XLR interface

Sensitivity (at 1kHz)

-29dBV(0 dBV=0.775V/Pa)

Frequency response

80Hz-20kHz

Attenuation

-10dB(-12dB Butwrth)

Limit SPL (1% THD@1 kHz)

130 dB(0 dB), 140 dB(-10 dB)

Equivalent SPL (according to IEC 651)

19 dB-A

SNR

78 dB

Rated impedance

680Ω

Rated terminal impedance

>1 kΩ

Phantom power

+48V

Power consumption

3mA

Dimension (diameter × length)

22mm×148mm

Weight

205g
