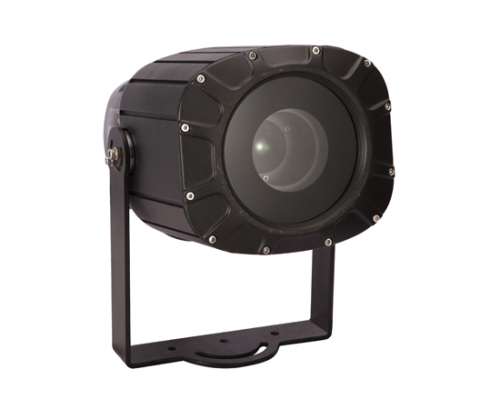

TL-LT301 150W Fire Effect Light

The Details Related Solution Related Cases Related Video Download


Feature:


* Dimming: 0-100% electronic linear dimming with jitter-free smooth dimming technology.

* Strobe: 0-25 times/second electronic strobe, adjustable speed, built-in random or pulse strobe.

* Color Wheel: 5 colors + 1 white light, bidirectional infinite rotation, magnetic positioning, color indexing, half-color functions, and more.

* Dynamic Effect Wheel: 1 fire pattern wheel + 1 effect wheel, simulating the dancing flames of a fire.

* Focus: Linear electric focus, with variable focus, the spot can create a variety of dancing flame effects.

* Features: High luminous efficiency, all-cast aluminum housing for excellent heat dissipation, and stable performance. Includes a 1.3-meter-long hand-in and hand-in power and signal cables for efficient on-site lighting setup.

* Scene Editing: Equipped with 20 independently editable scenes, a single-machine programmable recording of diverse scene lighting effects is possible.

* Software Update: Supports DMX signal updates and remote online updates via a cloud server, making software updates fast and convenient.

* Display Interface: Utilizes a 1.8-inch blue LCD display with four mechanical buttons, supports switching between Chinese and English, and can be rotated 180°.

* Temperature Protection: Built-in NTC temperature control intelligently reduces LED output power when the LED overheats.


Specification:


Input voltage

AC 110-240V50/60Hz

Rated power

170W

Power factor

PF≥0.98

Light source

1*150W white LED

Average light source lifespan

50000H

Color temperature

7500K

Luminous flux

9500 lm

Beam angle

45°

Control method

DMX512 protocol, RDM protocol, built-in master-slave mode, self-propelled mode, manual control mode, stand-alone programming control mode

Channel mode

Standard 6CH

Casing material

High-strength die-cast aluminum alloy + copper tube radiator + 1 waterproof fan to assist in heat dissipation

Power interface

One power input, one power output

Signal interface

One DMX512 input, one DMX512 output

Operating temperature

-20°C to 45°C

IP rating

IP67

Dimensions (L×W×H)

230 × 180 × 367 mm

Packaging dimensions (L×W×H)

270 × 250 × 455 mm (carton)

Gross weight

7.9kg

Net weight

7.0kg
