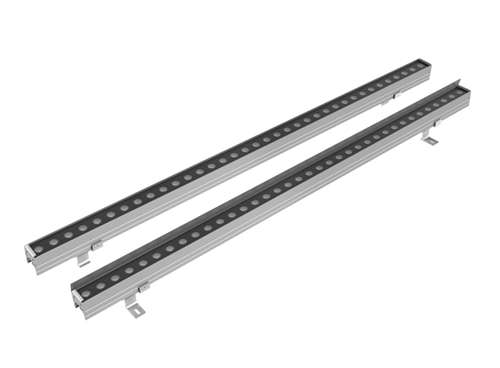

TL-LH1401/ TL-LH1402/ TL-LH1403 LED Wall Washer

The Details Related Solution Related Cases Related Video Download


Description:


The wall washer is suitable for panoramic floodlighting of internal and external walls such as government lighting projects, commercial places, stages, conference rooms, display lights, ancient buildings, cultural squares, overpasses, building exterior walls, architectural landmarks, etc. It is also applicable to landscape buildings, outdoor squares and so on.


Feature:


* High-power wall washer, stylish and beautiful appearance. Enlarged heat dissipation structure design fully guarantee the stability of LED and long lifespan;

* The fixture is made of 6063 aluminum alloy mold, the surface is anodized, and the lampshade is made of high-strength semi-toughened glass with impact resistance, friction resistance and excellent rainwater cleaning ability.

* No glue and waterproof design;

* Imported LED light source, high luminous flux output, good light color consistency, constant current design; RGB gray level is high, making the dynamic dimming effect softer and colorful;

* Good electromagnetic compatibility, no electromagnetic interference to the surrounding environment.

* Built-in constant current driving circuit, allowing it to maintain efficient illumination. It operates stably over a wide voltage range, improving surge protection capability and avoiding flickering of the lights caused by changes in the external power supply voltage. During the process of connecting the lights in series, it ensures consistent brightness between the first and last light fixtures.



Specification:


Model

TL-LH1401

TL-LH1402

TL-LH1403

Input voltage/power

DC24V/24W

DC24V/12W

DC24V/6W

Light source

LUMILEDS/24PCS

LUMILEDS/12PCS

LUMILEDS/6PCS

Beam angle

10*60°(15°、30°、45°、60°optional)

Color temperature

3000K(1900K、2100K、4000K、5700K optional)

Light effect

≥80lm/W

Color rendering index

Ra≥80

Color tolerance

SDCM≤5

Light source life

50000H

Control method

ON/OFF

IK Class

IK08

IP Class

IP65

Shell material

Aluminum + tempered glass

Shell color

Sand gray

Installation method

Bracket screws

Product size (L×W×H)

1000*46*108mm

500*46*108mm

500*46*108mm

Packaging size (L×W×H)

1080*460*180mm

580*460*260mm

580*460*260mm

Net weight/Gross weightNet weight/Gross weight

1.8kg/16kg(8PCS)

0.9kg/13kg(12PCS)

0.9kg/13kg(12PCS)

Remark

Light baffle optional
