Description:

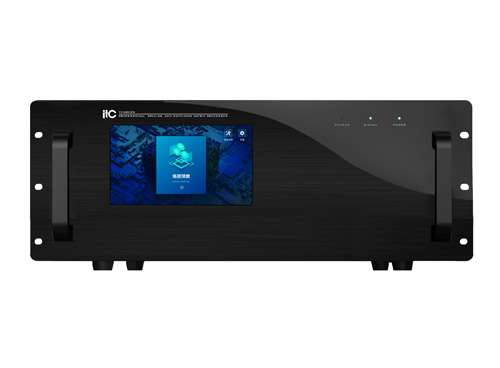

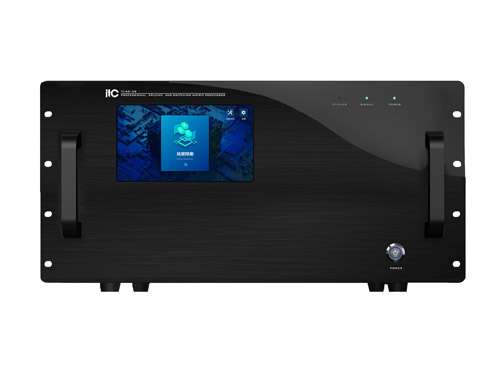

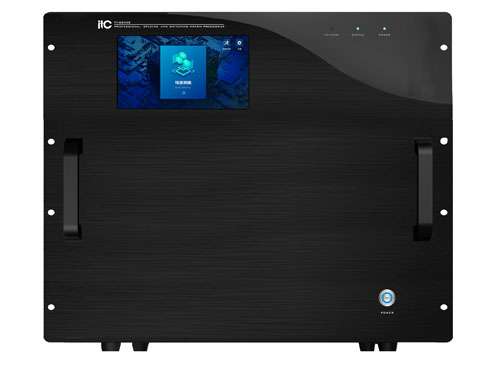

Hybrid seamless matrix switcher is a flexible matrix signal switcher. With high-performance hardware design, it perfectly supports switching and processing of various HD digital/analog signals. It provides a one-stop solution for various video and control signal distribution/switching/processing in various industries, which can be widely used in broadcast and television projects, multimedia conference halls, LED video wall projects, TV teaching, command centers and other places.

Feature:

*  It adopts pure hardware standardized chassis design and supports 36×36-channel signal switching.

*  Support HDMI, DVI, VGA, SDI, HD BaseT, optical fiber or any input / output signal board, improve system flexibility. DVI input board is compatible with CVBS, YUV, VGA signal, VGA input / output board are compatible with CVBS, YUV, VGA.

*  Customized configuration of various types of the same or different I/O boards to form a matrix of single interface type or multi-interface type, such as HDMI matrix, DVI matrix, VGA matrix, YUV matrix, etc.

*  The input and output resolution supports 4K@60Hz.

*  Support seamless switching function, no black screen signal during the switching process.

*  It adopts multi-threaded communication technology, supports access to 1 control board, has 1 RS-232 interface, 1 RS-485 interface, 1 TCP/IP port, and supports extended touch screen control.

*  Support audio and video signal synchronization switching, switching response speed is fast.

*  Support analog audio and HDMI embedded audio selection input.

*  Support analog audio and HDMI embedded audio output at the same time.

*  HDBaseT input and output signals support bidirectional RS-232 and bidirectional IR signal transmission, which can switch between RS-232 and IR signals with video signal, or separate switching mode, and support POC external power supply.

*  Support power off memory protection to avoid repeated setting action when power off.

*  Redundant power supply is configured , support hot swap;

*  Multiple preset instructions can be stored in the system, which can be switched with one button when calling.

*  It adopts infinite scaling algorithm and video codec processing technology, supports adjustment of picture chroma, brightness, contrast, color temperature, gamma value, etc., and supports HDR picture quality enhancement function.
