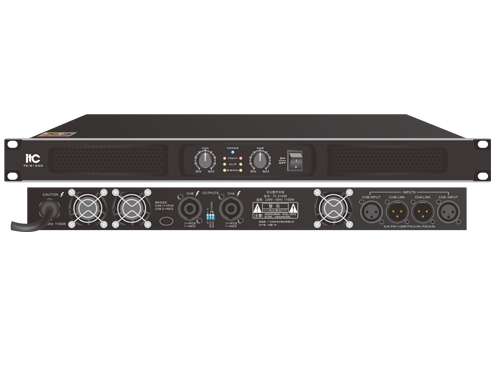

* 1U cabinet design, small in size and light in weight.
* Adopt the latest class D digital amplifier design, with low distortion and high efficiency.
* Adopt switched power supply technology, with high efficiency, to effectively suppress the harmonics of the power supply, meeting the EU green power supply standard.
* Adopt smart peak clipper to control the power module and speaker system to work in a safe range.
* Designed with standard XLR input interface and LINK output interface, convenient for different user needs.
* Support soft start to prevent absorbing large current from the power grid during startup and interfering with other electrical equipment.
* Smart control forced heat dissipation design, low fan noise and high heat dissipation efficiency.
* Support three optional modes: mono, stereo, bridge.
* Support overvoltage protection, undervoltage protection, overcurrent protection, DC protection, output short circuit protection, temperature control fan and so on.
|
Model |
TC-2200B |
|
Output power |
Stereo@8Ω: 200W×2 Stereo@4Ω: 400W×2 |
|
Input sensitivity |
2.2dBu(1V) |
|
Input impedance |
10KΩ |
|
Frequency response (@1W Power) |
20Hz-20KHz/±1dB @8Ω |
|
THD+N (@1/8 power) |
≤0.01% |
|
Isolation (@1KHz) |
≥80dB |
|
Damping coefficient(@1KHz) |
≥200@ 8 ohms |
|
SNR (A-weighted) |
≥93dB |
|
Input voltage |
~220V/50Hz |
|
Overall power consumption |
150W |
|
Dimension (L*W*H) |
484*206*44 |
|
Weight |
3.3kg |
Notes:
Output power: according to CEA-2006-B/CEA-490-A standard using 20ms pulse 1kHz sine wave measured under 1% total harmonic distortion.
Overall power consumption: according to GB4943.1-2022 test method: measured under 1kHz sine wave rated load 1/8 power conditions.
