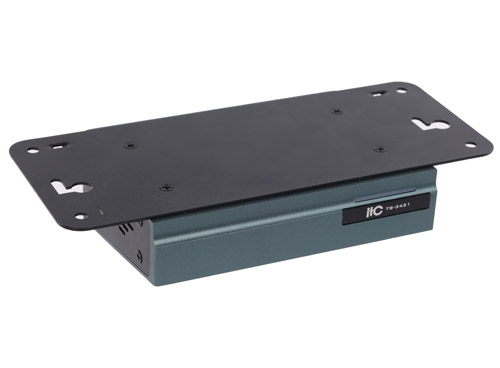

TS-3421 Converter Box

The Details Related Solution Related Cases Related Video Download


1. Work indicator

2. XLR channel balanced input 1

3. Network interface 1

4. Network interface 2

5. Channel 1 Control Line

6. Channel 2 Control Line

7. XLR channel balanced input 2

8. Channel indicator

9. ID code button


Feature:


* The network interface supports IEEE802.3, IEEE802.3u, IEEE802.3x standards, with strong anti-interference ability.

* Support network extension function: using 100M network transmission, network cable hand in hand cascading, easy wiring.

* Support Edit ID function.

* Support web page firmware upgrade function.

* Support analog-to-digital conversion function; analog audio is converted into digital signal and transmitted to the controller to realize long-distance network communication function.


Specification:



Model

TS-3421

Maximum power consumption

4.5W

Power voltage

Powered by conference controller

XLR channel balanced input 1

XLR female plug

XLR channel balanced input 2

XLR female plug

Channel 1 control line

485 control line

Channel 2 control line

485 control line

Network interface

Connected to the conference controller

Frequency response

80Hz~16kHz

Color

Fine sand graphite gray

Edit ID function

ID code button

Installation method

Bottom of the conference table

Dimension (L*W*H)

200*90*44.2mm

Weight

0.49kg
