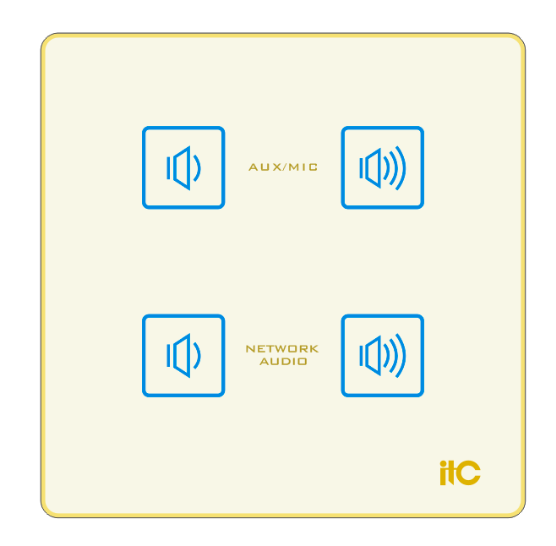

T-7771 Volume Control

The Details Related Solution Related Cases Related Video Download

Description:


It is suitable for ordinary classrooms, multimedia classrooms, offices, conference rooms, prisons, hospital departments, subways and other places to increase external control equipment and expand the functionality of IP network terminals.



Features:


* Professional integrated IoT type 86 box design, the whole structure is very sturdy.

* Built-in high-performance 32-bit dual-core processor, fast processing speed, stable and so on.

* Built-in industrial-grade terminal block and IP network terminal real-time communication interface.

* Supports external control device functions: touch volume adjustment for external sound source input; touch volume adjustment for network tasks;

* The external control equipment is connected by blue and white cable (24AWG), and the connection distance is ≤15 meters.



Specification:


Model

T-7771

Communication Interface

Industry standard terminal blocks

Communication Distance

15m

Transmission Rate

34Kbps

Power Consumption

3W

Operating Temperature

5~40

Environment Humidity

20%~80%(relative humidity, no condensation)

Power Supply

DC 24V (provided by the controlled terminal)

Dimension

90.5×90.5×27.5mm

Weight

0.5kg
