Features:

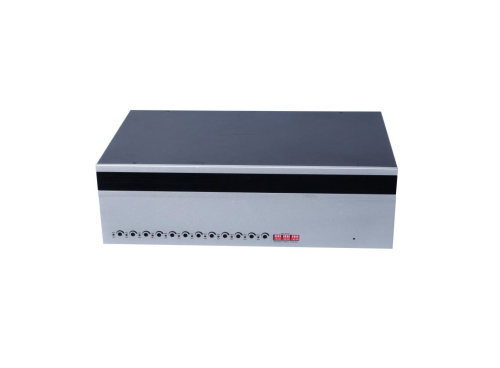

* Professional-grade audio signal distributor, suitable for conference rooms, bands, performances, radio stations, etc.
* With 12 independent balanced input channels and 36 independent balanced output channels; a single input channel can be assigned to 3 balanced output channels, with a total of 48 channels (12 in and 36 out).
* Each input channel supports MIC/Line level input (without mixing function), and support independent 48V phantom power supply, with MIC gain (control 0~30dBu).
* Adopt low-noise analog circuit design. When the gain is minimum, the noise floor is -104dBu. When the microphone gain is 30dBu, the noise floor is -88dBu. The analog circuit is designed with high standard and ultra-low distortion, <0.0007% @1Khz 0dBu AES17 ( 20Khz).
Specification:
|
Balanced input |
12 channels |
|
Balanced output |
36 channels |
|
Input impedance range |
600Ω |
|
Input interface |
XLR balanced interface |
|
Output impedance |
10KΩ |
|
Output Interface |
XLR balanced interface |
|
Frequency response |
20HZ—20KHZ（±＜0.05dB） |
|
THD+N |
＜0.0007% @1Khz 0dBu AES17 （20Khz） |
|
Noise floor |
-104dBu @Gain Min, AES17 (20Khz) |
|
Maximum input level |
+18dB |
|
CMRR |
> 80dB |
|
Power consumption |
35W |
|
Working temperature |
0℃～40℃ |
|
Working environment humidity |
40%~60% relative humidity, no condensation |
|
Dimensions |
487.8×256.6×132mm |
|
Net weight |
5.0kg |
|
Gross weight |
6.3kg |
