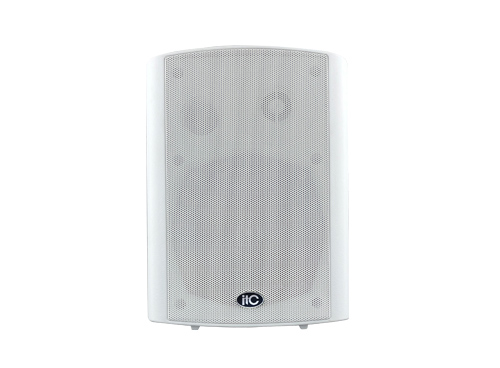

T-775PW Wall Mount Speaker

The Details Related Solution Related Cases Related Video Download


Specification:


Model

T-775PW

Power Taps @100V

3.75W, 7.5W, 15W, 30W

Power Taps @70V

1.9W, 3.75W, 7.5W, 15W, 30W

Transformer Impedance

2.6KΩ/1.3KΩ/670Ω/330Ω/165Ω

Input

70V/100V/8Ω

SPL(1W/1M)

92dB

Max. SPL (Rated W/1M)

107dB

Frequency Response (-10dB)

125-18KHz

Finish

Baffle: ABS, Black/White

Grille: Steel, Black/White

Speaker Driver

5" x 1 1.5" x 1

Dimensions

243 x 185 x186mm

Weight

2.7kg

Mounting

With mounting bracket fixed by screw
