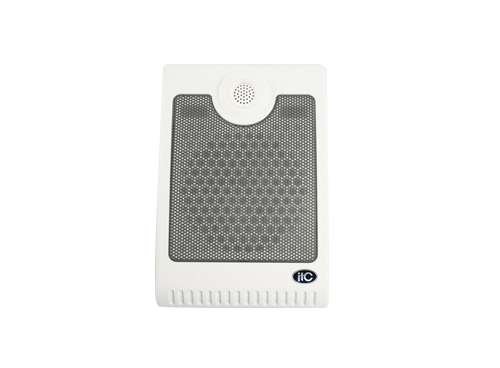

TW-776C Indoor Wall Mounted Speaker

The Details Related Solution Related Cases Related Video Download

Feature:


*  Composed of a 6.5-inch subwoofer unit and a 1-inch dome tweeter.

*  The cabinet is made of PP injection molding, with a streamlined appearance and elegant design.

*  Equipped with an aluminum mesh grille and an acoustic sound-permeable sponge inside to prevent dust and water droplets from damaging the speaker unit.

*  Precise two-way crossover design is adopted to optimize the frequency response and the mid-range expressiveness of the vocal part.

*  With constant resistance and constant voltage selection function. With a U-shaped bracket, it is convenient for engineering installation.

*  Suitable for indoor fixed installation; applied to BGM broadcasting applications in theme parks, scenic spots and other cultural tourism sound reinforcement scenarios.


Specification:


Model

TW-776C

Speaker type

Indoor wall mounted speaker

Rated power (100V)

7.5W/15W/30W/constant resistance 8Ω, 30W

Rated power (70V)

3.75W/7.5W/15W/constant resistance 8Ω, 30W

Nominal impedance

/1333Ω/666Ω/333Ω/constant resistance 8Ω

Frequency range (-10dB)

75Hz-20kHz

Sensitivity (1M/1W)

90dB

Maximum SPL

108dB

Coverage angle (-6dB)

100°(H)×80°(V)

Subwoofer

6.5-inch subwoofer×1

Tweeter

1-inch tweeter×1

Net weight

3.2kg

Dimension (H×W×D)

280×178×186mm
