Are you looking for a way to improve your audio system's performance and flexibility? Consider incorporating zone mixer amplifiers into your setup. These devices allow you to split your audio signals into different zones, enabling you to play different audio content in different areas of your space. Zone mixer amplifiers are perfect for large venues such as conference centers, churches, and stadiums, where multiple speakers are needed to cover a wide area.
In addition, zone mixer amplifiers offer flexibility in terms of input sources. They allow you to connect multiple audio sources such as microphones, CD players, and laptops, and switch between them easily. Some models also come with built-in Bluetooth, which allows you to stream audio wirelessly from your mobile devices.
Look for a itc Zoned Audio model that suits your specific needs and budget

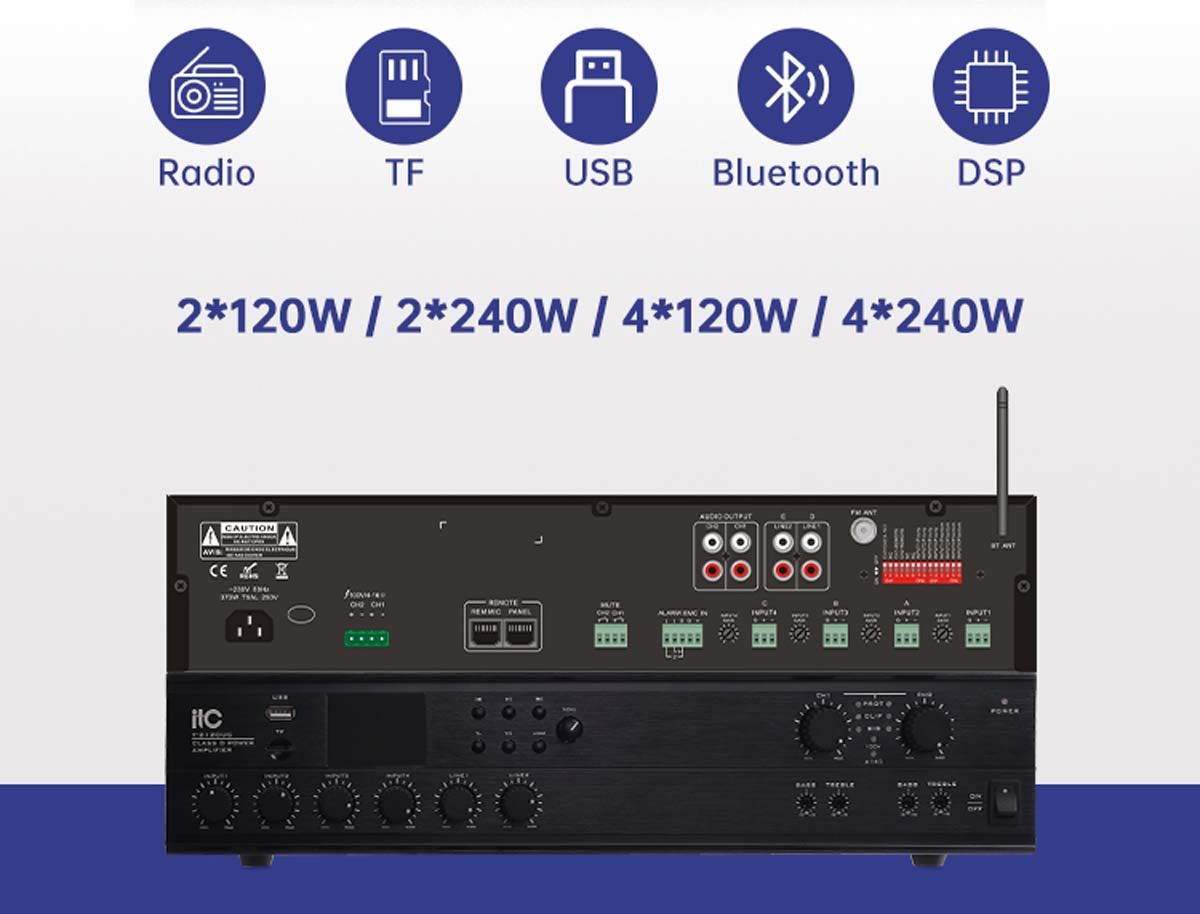

Model
T-2120UC
T-2240UC
T-4120UC
T-4240UC
Output terminal
4-16Ω, 100V
Output power
2*120W
2*240W
4*120W
4*240W
Input sensitivity & impedance
INPUT1-4: 5mV-350MV±40MV/600Ω;
LINE1-2: 350mV±40MV/10KΩ unbalanced RCA connector;
EMC: 775mV/10KΩ unbalanced European connector
Output sensitivity & source impedance
CH1-2: 1000mV/470Ω unbalanced RCA connector
Tone
Bass: ±10dB at 100Hz
Treble: ±10dB at 10KHz
Frequency response
80~16KHz(+1dB,-3dB)
SNR
INPUT1-4:66dB; LINE1-2:80dB
THD
< 0.5% (at 1KHz, 1/3 rated power)
Phantom power
48V (±2V)
Protection
High temperature, overload, short circuit
Cooling
Fan forced cooling
Power consumption
370W
650W
650W
1200W
Power supply
230V/50Hz
Dimension
484x395x88mm
Weight
6.0kg
6.2kg
7.3kg
7.6kg
