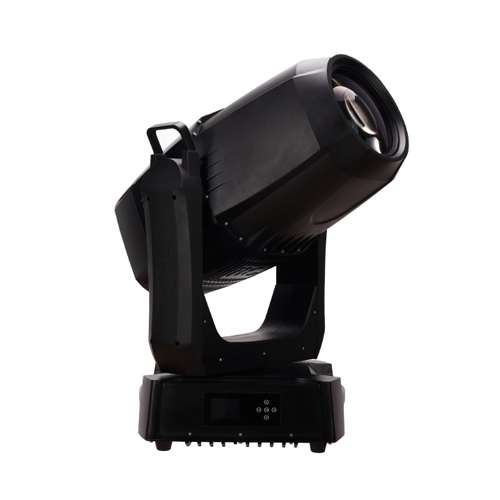

TL-LT803 Moving Head Beam Light

The Details Related Solution Related Cases Related Video Download


Feature:


* Color: 1 color wheel, 16 colors + 1 white light.

* Fixed pattern: 18 fixed gobo wheel + 1 white light, with flow, index, and shaking functions.

* Focus: DMX linear focusing, ultra-fine and smooth focus adjustment.

* Prism (standard): eight prisms + four row lens, sixteen prisms,support variable-speed bidirectional rotation and superimposition.

* Strobe: Double-chip strobe 0.3-25 times/s, with synchronous, asynchronous and random strobe modes, and the speed is adjustable.

* Scanning range: X-axis 540°/4.5 S, Y-axis 270°/2.8 S, with automatic return function.

* Display interface: adopt widescreen 2.8-inch LCD interface in Chinese and English, with flip function;

* The input signal has isolation protection function to ensure stable signal transmission without interference.

* Support high temperature intelligent protection, automatically turn off the light if the temperature is too high;

* Support automatic power reduction of ballast in closed light state;

* Support software upgrade through DMX data cable;

* Support to display lamp usage time, bulb usage time and software version number.


Specification:


Input voltage

AC110V-240V 50/60Hz600W

Ballast

Electronic ballast

Light source

SIRIUS HRI® 420W

Average lifespan

2500H

Color temperature

7850K±300K

Beam angle

2.5°

Control mode

DMX512 protocol ;support RDM protocol and program online update function (optional for DMX wireless function)

Channel

12/15 channels

Fixture material

High temperature engineering plastic + cast aluminum material

Protection class

IP66

Fixture size (L×W×H)

477×320×724mm

Packaging size (L×W×H)

655×610×530mm

Gross weight

39kg

Net weight

34.5kg
