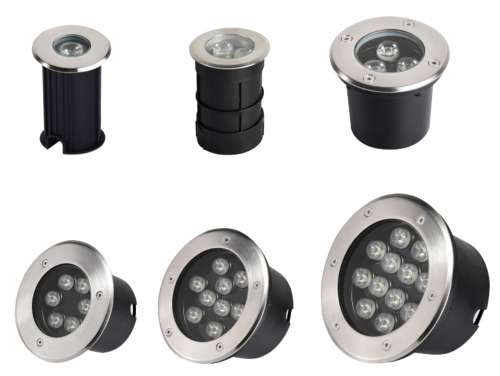

TL-LH6101/ TL-LH6102/ TL-LH6103/ TL-LH6104/ TL-LH6105/ TL-LH6106 LED Underground Light

The Details Related Solution Related Cases Related Video Download


Description:


LED underground light is widely used in shopping malls, parking lots, green belts, park spots, residential quarters, urban sculptures, pedestrian streets, building steps and other places. It is buried in the ground and mainly used for decoration or indication lighting.


Feature:


* Reasonable heat dissipation design enables the heat of the LED to be quickly conducted through the light structure to ensure its luminous efficiency and service lifespan;

* The flat glass and stainless steel surface cover are perfectly seamless to avoid dust deposits;

* The low-gradient surface cover allows pedestrians to walk without obstacles and prevents them from falling;

* 6063 aviation aluminum extrusion fixture, surface electrostatic spraying treatment, 316 wire-drawing stainless steel surface cover, and ADC12 die-casting aluminum rear cover;

* 10mm ultra-white tempered glass, with seismic and impact protection grade of IK10, and strong load-bearing capacity.


Specification:


Model

TL-LH6101

TL-LH6102

TL-LH6103

TL-LH6104

TL-LH6105

TL-LH6106

Input voltage/power

DC24V/50Hz/36W

DC24V/50Hz/18W

DC24V/50Hz/9W

DC24V/50Hz/36W

DC24V/50Hz/18W

DC24V/50Hz/9W

Number of LED lamp bead/

light source

Philips/24PCS

Philips/12PCS

Philips/6PCS

Epistar/24PCS

Epistar/12PCS

Epistar/6PCS

Beam angle

15° (30, 45, 60° optional)

15° (30, 45, 60° optional)

15° (30, 45, 60° optional)

15° (30, 45, 60° optional)

15° (30, 45, 60° optional)

15° (30, 45, 60° optional)

Color temperature

3000K (1900, 2100, 4000,

5700K optional)

3000K (1900, 2100, 4000,

5700K optional)

3000K (1900, 2100, 4000,

5700K optional)

RGB

RGB

RGB

Control method

/

/

/

RGB/6 bands

RGB/3 bands

RGB/3 bands

Installation method

Embedded

Embedded

Embedded

Embedded

Embedded

Embedded

IP level

IP67

IP67

IP67

IP67

IP67

IP67

Fixture size (L×W×H)

1050×115×100mm

500×115×100mm

300×115×100mm

1050×115×100mm

500×115×100mm

300×115×100mm

Certificate

CE/ROHS

CE/ROHS

CE/ROHS

CE/ROHS

CE/ROHS

CE/ROHS
