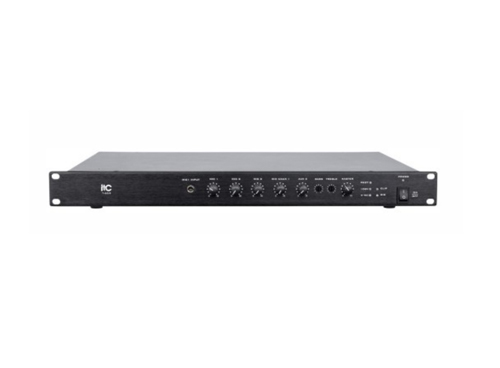

* Digital Mixer Amplifier.
* It is used for background music playback of small and medium-sized indoor venues such as small and medium-sized supermarkets, shopping malls, and leisure cafes.
* Standard cabinet design (1U), exquisite SMT process design.
* 1 EMC input, 2 AUX inputs, 4 MIC inputs.
* Channel priority function: EMC>MIC1>MIC2, MIC3, AUX1, AUX2.
* Each input has independent volume adjustment, and the total volume has treble, bass adjustment and volume control function.
* The device is equipped with level indication, overload and protection indicators.
* The device has good self-protection such as short circuit, overload and overheating.
* Two output modes: 100V, 4-16Ω.
* The high-efficiency energy-saving switching power supply is perfectly combined with the high-energy saving and ultra-stable design of class D digital power amplifier.
* Wide voltage supply: 220V-240V can work normally.
|
Model |
T-350D customized |
|
Output Terminals |
4-16Ω, 100V |
|
Output Power |
350W |
|
Input Sensitivity & Impedance |
MIC1, 2, 3, 4 input:5mV/600Ω unbalanced 6.3 connector AUX1, 2 input:350mV/10KΩ unbalanced RCA connector |
|
|
EMC input:775mV/10KΩ unbalanced 6.3 connector |
|
Output Sensitivity & |
MIX OUT:1000mV/470Ω unbalanced RCA connector |
|
Source Impedance |
|
|
Tone |
Bass:±10dB at 100Hz |
|
|
Treble:±10dB at 10KHz |
|
Frequency Response |
50Hz-20KHz |
|
SNR |
MIC1, 2, 3: 66dB; AUX1, 2: 80dB |
|
THD |
Less than 0.5%(@1KHz, 1/3 rated power) |
|
Mute |
MIC 1 prior to MIC2-4,AUX1-2 audio input, EMC prior to all audio input |
|
Channel Crosstalk |
≥50dB |
|
Attenuation |
Forced fan cooling after side entry, fan start after start, |
|
Cooling |
stepless speed change processing |
|
Protection |
Overheating protection, over current protection, short circuit protection |
|
Power Supply |
~220-240V /50Hz |
|
Power Consumption |
100W |
|
Dimension |
484×300×44mm |
|
Weight |
3.9Kg |
