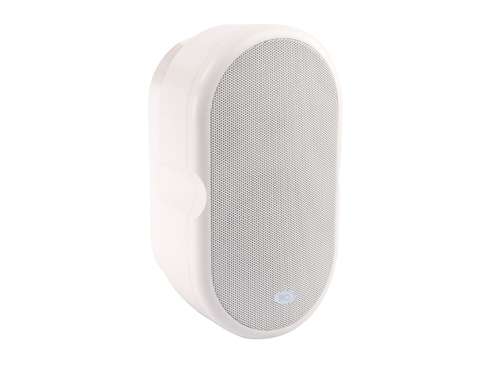

TS-G560 Speaker

The Details Related Solution Related Cases Related Video Download


Feature :


* Polystyrene material, one-piece injection molding structure, simple and elegant appearance, full of aesthetics.

* The one-piece stamped and formed mesh grille, pasted with acoustic sound-permeable mesh cotton inside, can effectively prevent dust and water droplets from damaging the speaker unit.

* Built-in a 5-inch woofer and a 25-core silk film tweeter, the speaker adopts a precise two-way design to optimize the frequency response and the mid-range expressiveness of the vocal part, providing transparent and bright treble, full and flexible bass, and round and clear alto.

* It is mainly used in teaching places such as ordinary classrooms, multimedia classrooms and lecture halls.


Specification:


Model

TS-G560

Color

White

Rated power

60W

Maximum power

120W

Nominal impedance

Frequency range (-10dB)

80Hz-20kHz

Sensitivity

94dB±3dB

Maximum SPL

114dB±3dB

Subwoofer

5" woofer×1

Tweeter

25-core tweeter×1

Coverage angle (-6dB)

100°(H) 70°(V)

Dimension (H×W×D)

337×186×163mm

Net weight

3.2kg
