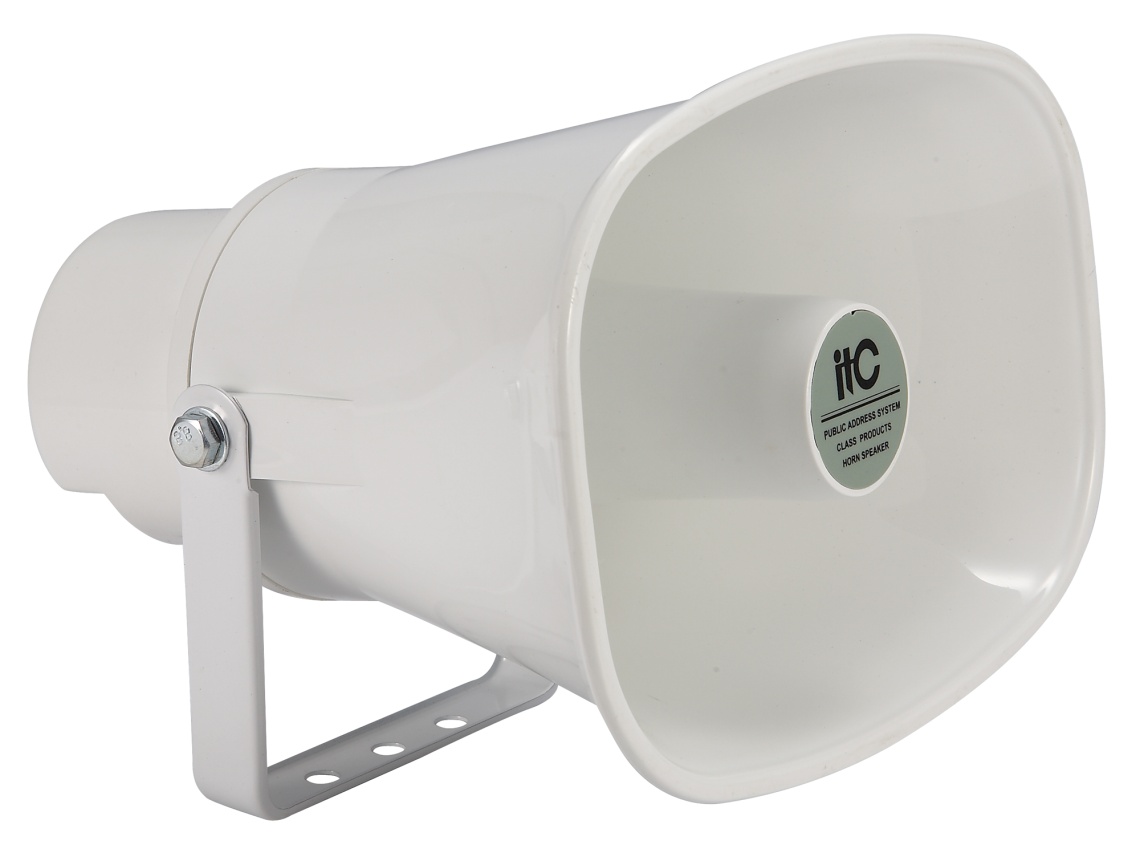

VA-720B Weatherproof Horn Speaker

The Details Related Solution Related Cases Related Video Download




* Wide frequency domain waterproof speaker with strong sound penetration and wide coverage.

* Application: square, train station, etc.



Specification:

Model

VA-720B

Power Taps @100V

7.5W, 15W

Power Taps @70V

3.75W, 7.5W

Impedance

Black: Com   White: 1.3KΩ  Green: 670Ω

SPL(1W/1M)

103dB  ±3 dB

Max. SPL (Rated W/1M)

115dB

Frequency Response (-10dB)

250-8KHz

Finish

Baffle: ABS, White

IP Rate

IP x 65

Dimensions

221 x 165 x 235mm

Weight

1.6Kg

Mounting

With mounting bracket fixed by screw
